Корпуса микросхем по стандарту JEDEC

STEP модели по стандарту JEDEC, JEDEC STEP Models

MS-001-D

Standard - Dual-In-Line Plastic Family .300 inch Row Spacing. R-PDIP-T. Item 11.11-271S

Внешний вид Модель JEDEC Name Description

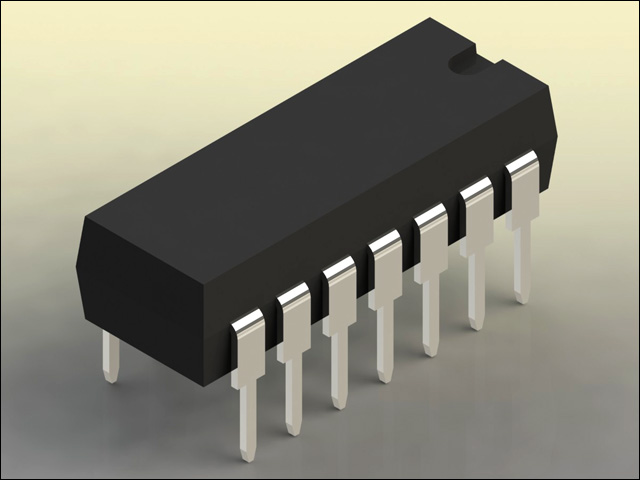

MS-001.AA DIP14
 MS-001.AA DIP14

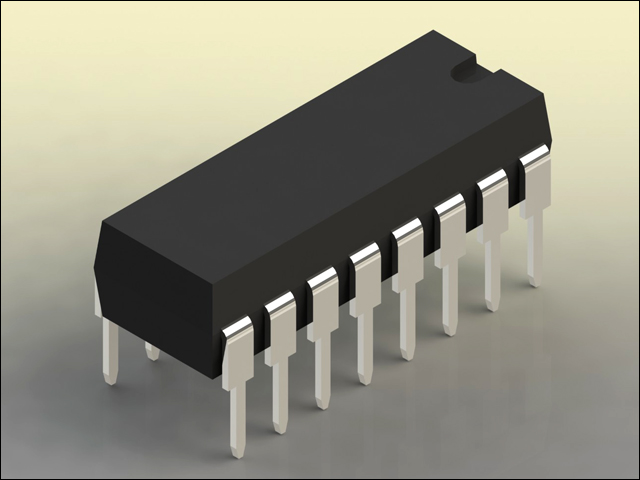

MS-001.AB (DIP16)
 MS-001.AB DIP16

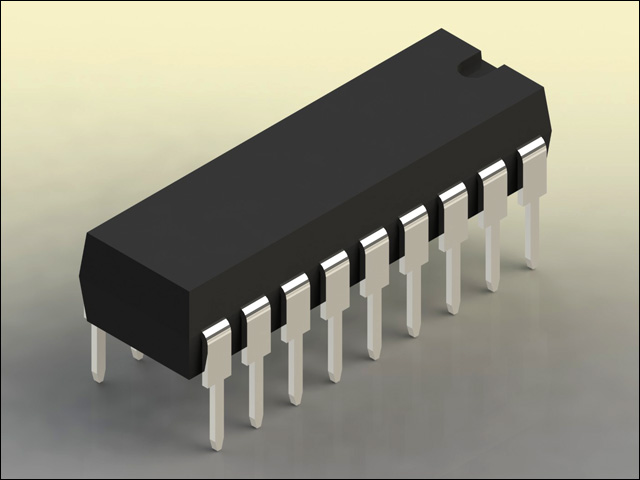

MS-001.AC (DIP18)
 MS-001.AC DIP18

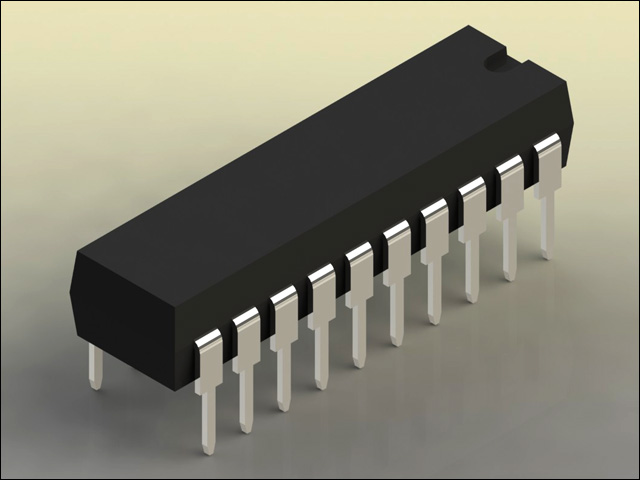

MS-001.AD (DIP20)
 MS-001.AD DIP20

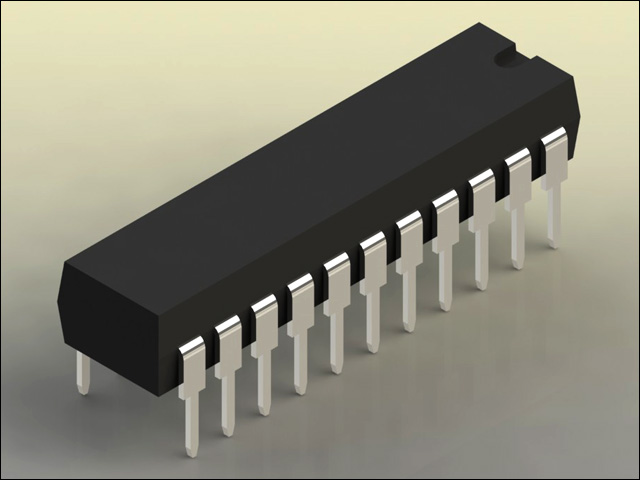

MS-001.AE (DIP22)
 MS-001.AE DIP22

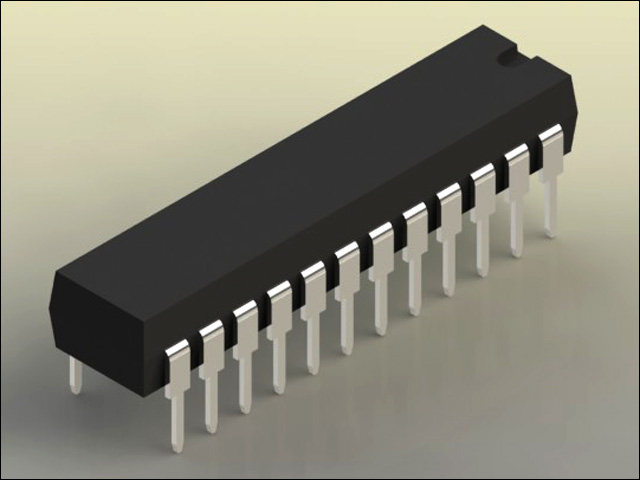

MS-001.AF (DIP24)
 MS-001.AF DIP24

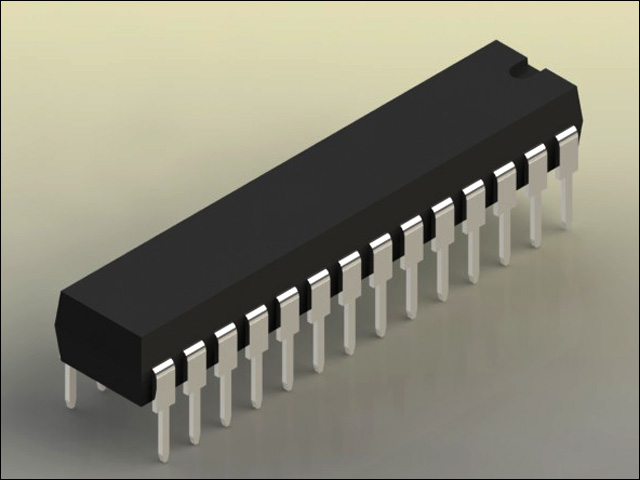

MS-001.AG (DIP28)
 MS-001.AG DIP28

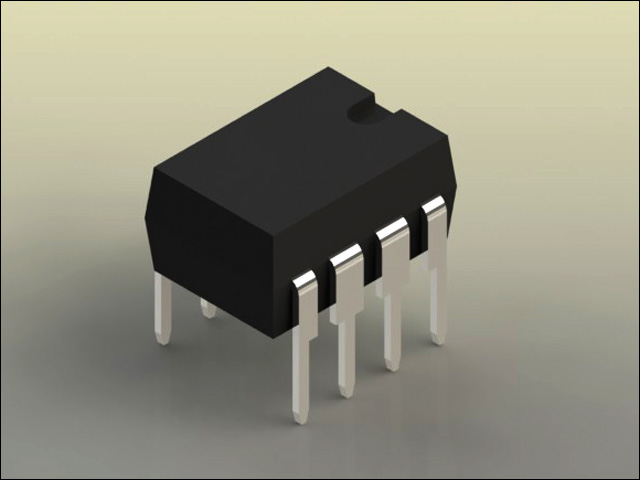

MS-001.BA (DIP8)
 MS-001.BA DIP8

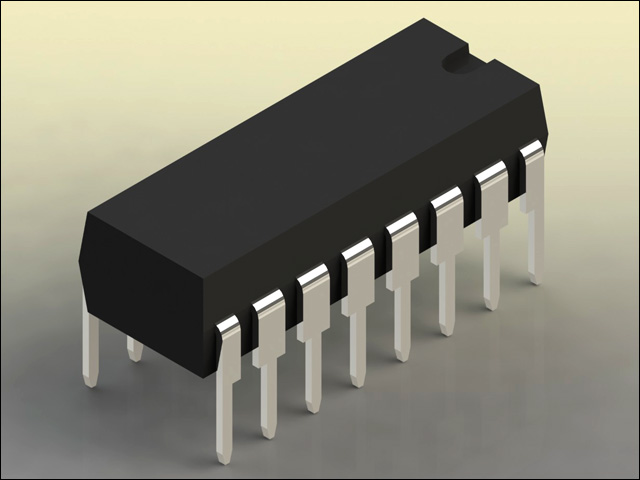

MS-001.BB (DIP16)
 MS-001.BB DIP16

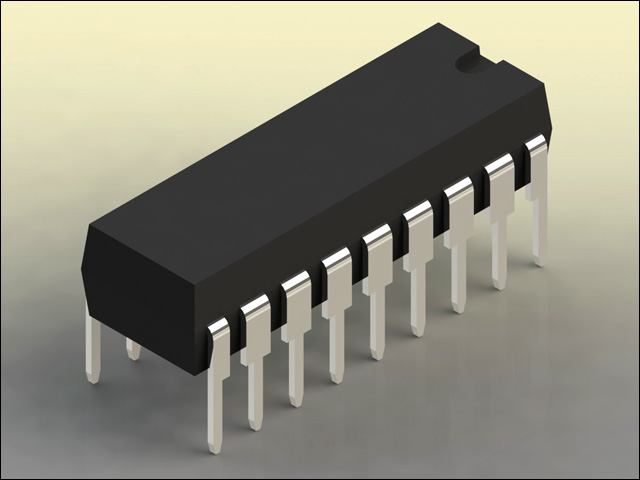

MS-001.BC (DIP18)
 MS-001.BC DIP18

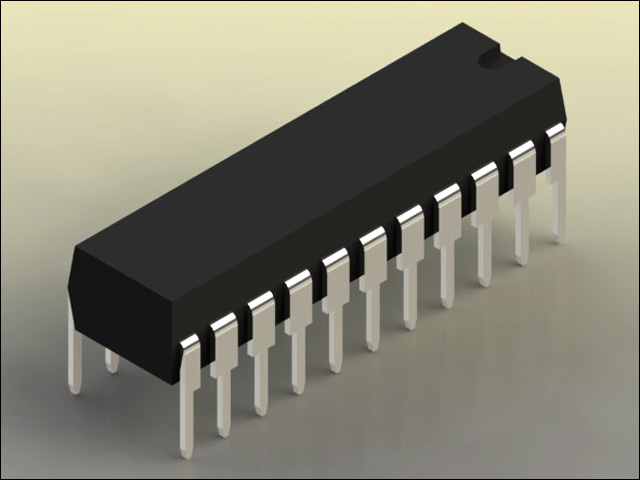

MS-001.BD (DIP22)
 MS-001.BD DIP22

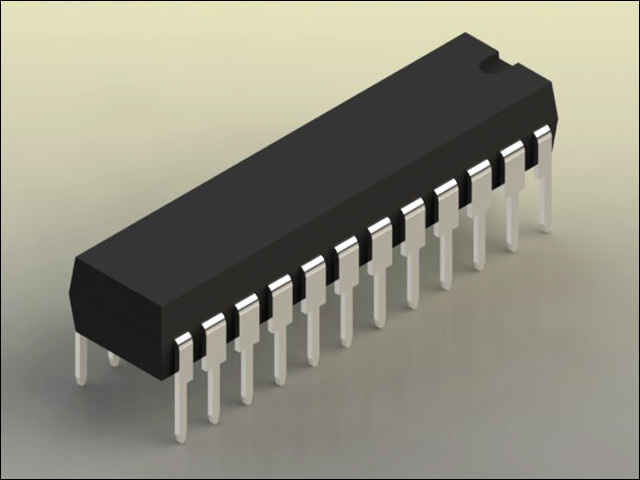

MS-001.BE (DIP24)
 MS-001.BE DIP24

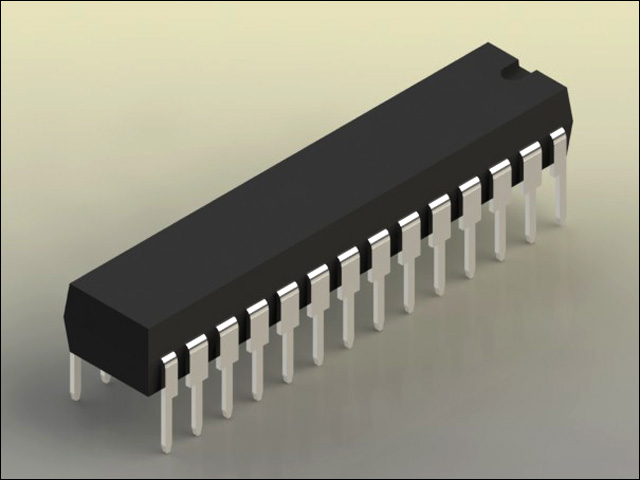

MS-001.BF (DIP28)
 MS-001.BF DIP28


MS-012F

Standard - Plastic Small Outline (SO) Family Peripheral Terminals, 1.27 mm Pitch, 3.90 mm Body Width (Mold Flash and End Protrusion). R-PDSO/SOP/SOIC. Item 11.11-801(s)

Внешний вид Модель JEDEC Name Description

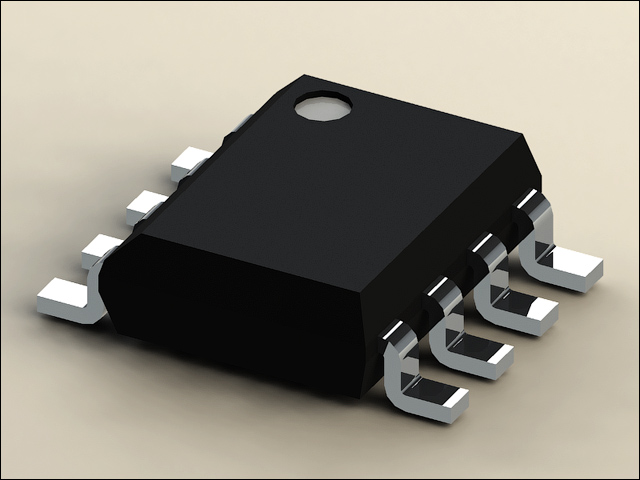

MS-012.AA (SO8)
 MS-012.AA SO8

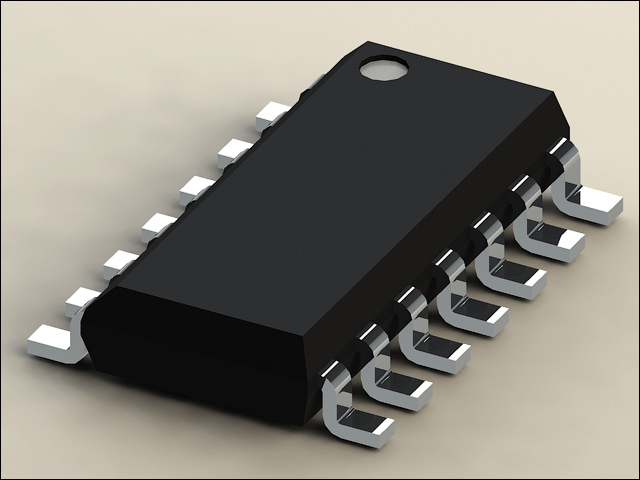

MS-012.AB (SO14)
 MS-012.AB SO14

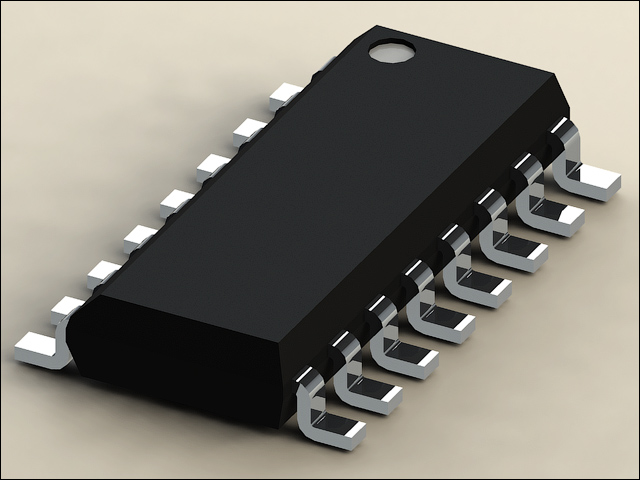

MS-012.AC (SO16)
 MS-012.AC SO16
MS-012.BA (SO8)
 MS-012.BA SO8 with Thermal Pad
MS-012.BB (SO14)
 MS-012.BB SO14 with Thermal Pad
MS-012.BC (SO16)
 MS-012.BC SO16 with Thermal Pad
